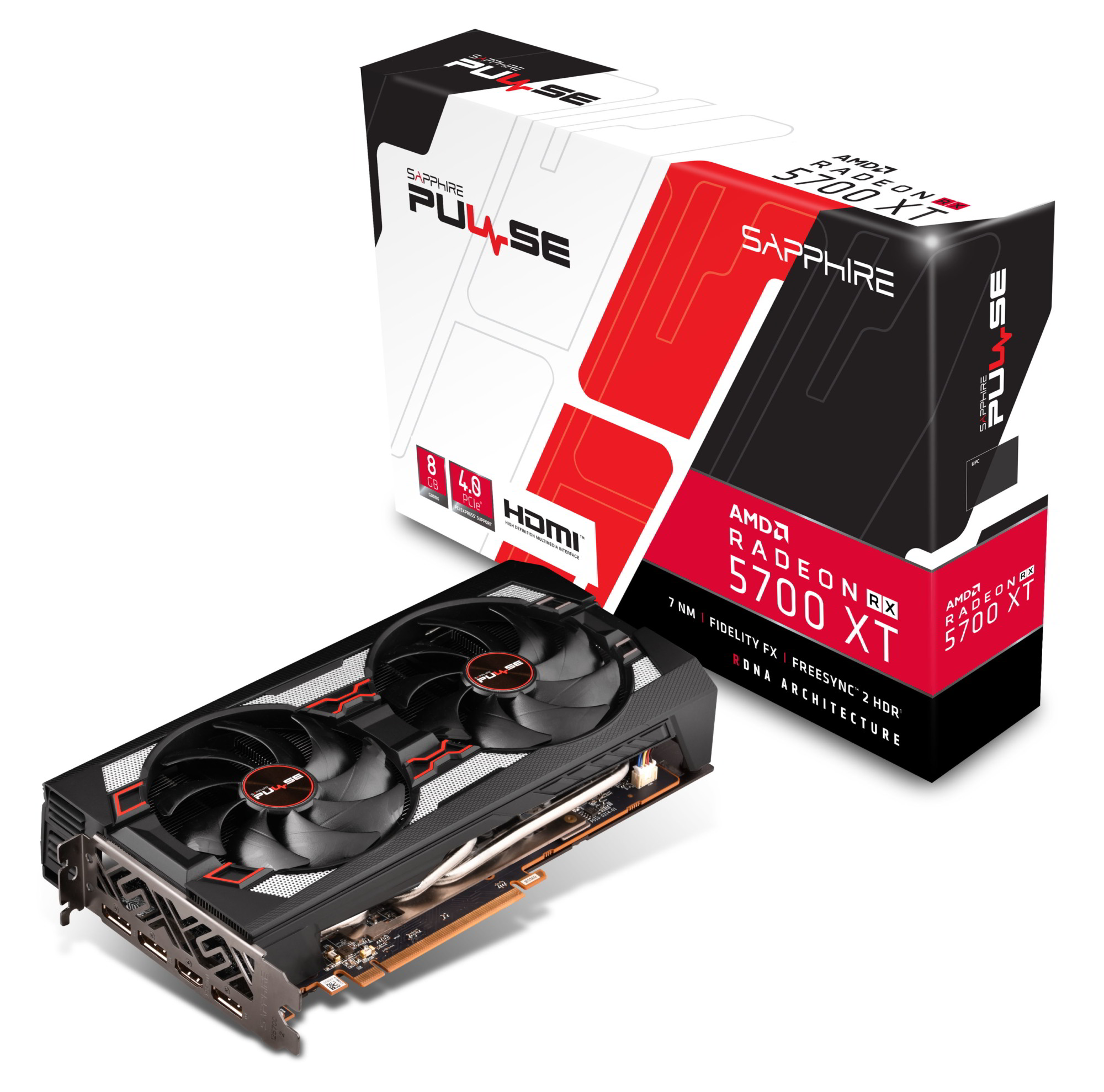

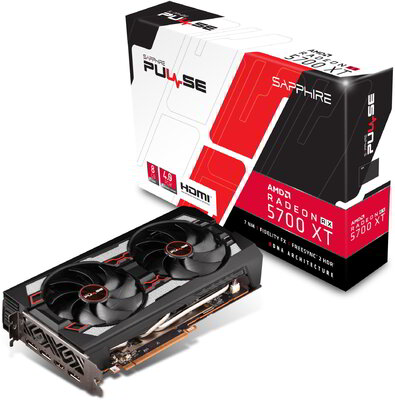

PULSE RX 5700 XT 8G GDDR6
- GPU: Boost Clock: Up to 1925 MHz
- Memory: 8GB/256 bit GDDR6. 14 Gbps Effective
- Stream Processors: 2560
- 4K@120Hz
- Dual-X Cooling Technology
Specifications
GPU
Radeon™ RX 5700 Graphics
2nd Gen 7nm GPU
RDNA Architecture
Engine Clock
- Boost Clock: Up to 1925 MHz
- Game Clock: Up to 1815 MHz
- Base Clock: 1670 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2560
Memory Size/Bus
8GB/256 bit GDDR6
Memory Clock
14 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
Interface
PCI-Express 4.0
Output
BIOS Support
API
- Vulkan®
- OpenGL® 4.6
- OpenCL 2.0
- DirectX® 12
- Shader Model 6.4
Game Index
Extreme 1440P
Sapphire Features
- Power Design
- Free Flow
- TriXX Supported
- TriXX Boost
- Red LED Logo
- Intelligent Fan Control IV
- Precision Fan Control
- Robust VRM Cooling
- Robust Memory Cooling
- Dual-X Cooling Technology
- Tough Metal Backplate
- PCB Layers
- Two-Ball Bearing
- Fan Quick Connect
- Fuse Protection
- Dual BIOS
AMD Features
- RDNA Architecture
- 2nd Gen 7nm GPU
- GDDR6 Memory
- Power Efficiency
- PCI Express 4.0 Support
- Video Streaming up to 8K
- Display Port 1.4 (HBR3) / DSC
- Radeon™ Software
- Radeon™ Boost
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- AMD FidelityFx
- Async Compute
- Radeon™ Rays Audio + True Audio Next
- Radeon™ FreeSync™ 2 HDR
- Radeon™ VR Ready Premium
Cooling
- Dual-X Cooling
- Dual Fan
- Two-Ball Bearing
Form Factor
2.3 slot, ATX
Dimension: 254 x 135 x 46.5 (mm)
Power Consumption
OS
Windows® 10, Windows® 7 64bit operating system required
System Requirement
- Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
- 1 x 8-pin Power Connector.
- 1 x 6-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
Törekszünk a weboldalon megtalálható pontos és hiteles információk közlésére. Olykor, ezek tartalmazhatnak téves információkat: a képek tájékoztató jellegűek és tartalmazhatnak tartozékokat, amelyek nem szerepelnek az alapcsomagban, egyes leírások vagy az árak előzetes értesítés nélkül megváltozhatnak a gyártók által, vagy hibákat tartalmazhatnak. A jelzett szállítási idők külső tényezők miatt néhány esetben nem teljesülhetnek, nem tekinthetők véglegesnek.
Chipset |
AMD |
Memória |
8 GB |
Csatlakozó |
PCI Express 4.0 |
Memória típus |
GDDR6 |
Hűtő típus |
Aktív |
Profil |
Normál |
Súly |
1.11 kg |
