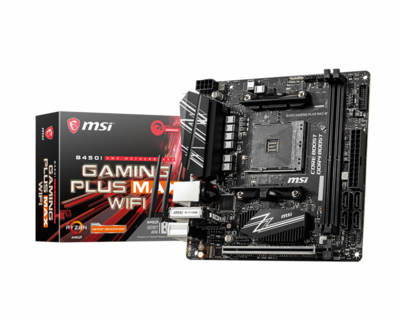

MSI B450 sAM4 B450I GAMING PLUS MAX WIFI mini-ITX

CPU

Support AMD^® Ryzen™ 1st, 2nd and 3rd Generation / Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4

See supported processors

CHIPSET

AMD B450 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹
  • Supports 1866/ 2133/ 2400/ 2667Mhz by JEDEC
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory [non-ECC mode]

1. Please refer www.msi.com for more information on compatible memory. ComboPI 1.0.0.3-based and above BIOS are required.

See supported memory

EXPANSION SLOTS

• 1x PCIe 3.0 x16 slot
  • Supports x16 speed with AMD^® Ryzen™ 1st, 2nd and 3rd Generation processors
  • Supports x8 speed with AMD^® Ryzen™ with Radeon Vega Graphics processors
  • Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors

ONBOARD GRAPHICS

• 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz¹
• 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz¹²

1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD^® B450 Chipset

• 4x SATA 6Gb/s ports

AMD^® CPU

• 1x M.2 slot [M2_1, Key M]
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices [AMD^® Ryzen 1st, 2nd and 3rd Generation / Ryzen™ with Radeon™ Vega Graphics]
  • Supports PCIe 3.0 x2 and SATA 6Gb/s 2280 storage devices [AMD^® Athlon™ with Radeon™ Vega Graphics]

RAID

AMD^® B450 Chipset

• Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

AMD^® B450 Chipset

• 2x USB 3.2 Gen1 [SuperSpeed USBl Type-A ports on the back panel
• 4x USB 2.0 [High-speed USB] ports [2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector]

AMD^® CPU

• 4x USB 3.2 Gen1 [SuperSpeed USB] ports [2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen1 connector]

AUDIO

Realtek^® ALC887/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® 8111H Gigabit LAN controller

WIRELESS LAN & BLUETOOTH^®

Intel^® Dual Band Wireless-AC 3168 module

• The Wireless module is pre-install in the M2_2 [Key E] slot.
• Supports Wi-Fi 1x1 802.11ac, dual band [2.4GHz,5GHz] up to 433 Mbps speed.
• Supports Bluetooth^® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector [support additional 2 USB 2.0 ports]
• 1x USB 3.2 Gen1 connectors [support additional 2 USB 3.2 Gen1 ports]
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 2x 5050 RGB LED strip 12V connectors

BACK PANEL PORTS

1. USB 2.0
2. DisplayPort
3. LAN
4. Wireless / Bluetooth
5. Keyboard / Mouse
6. HDMI
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 3.2 Gen 1 5Gbps Type-A
9. Audio Connectors

I/O CONTROLLER

• NUVOTON NCT6795D Controller Chip

DIMENSIONS

• Mini-ITX Form Factor
• 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
