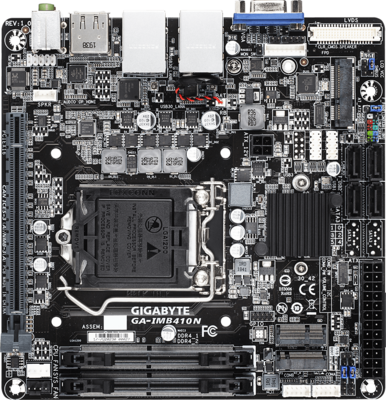

Gigabyte H470 s1200 GA-IMB410N 2xDDR4 SO-DIMM 4xSATA3 1xM.2 1xPCI-E Gbit LAN mini-ITX

• Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S)
• Intel Gen9.5,Intel Graphics DX12, OGL4.5
• Support Dual channel DDR4 2666/2933MHz, 2 x So-DIMM up to 32G System Memory
• Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S 65W)
• 1 x HDMI2.0, 1 x DP port ,1 x Dual channel 24-bits LVDS/eDP
• 4 x USB3.0, 4 x USB2.0, 4 x SATA3
• 1 x Mini PCIe/mSATA, 1 x PCIe x16, 1 x M.2 Wifi, 1 x 2242/80 SSD slot
• Gigabit LAN : 2 x Intel LAN
• 1 x TPM IC(Optional)
• ATX Power Require
• Op temp : 0~60 degree

• CPU

  1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package up to 65W
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)

• Chipset

  1. Intel^® H410 Express Chipset

• Memory

  1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
  2. Support for DDR4 2666/2933 MHz memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

  Support for up to 2 displays at the same time
  Maximum shared memory of 1 GB

• Audio

  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1-channel

• LAN

  1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)

• TPM

  1. Infineon chip, supporting TPM 2.0 (Optional)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x M.2 Socket 1 connector for PCIe wireless module
  3. 1 x full size Mini PCIe connector (MSATA_PCIE)
     * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
     * The MSATA_PCIE connector can also be used as an MSATA connector.
     (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)

• Storage Interface

  Chipset:

  1. 1 x M.2 connector on the top of the motherboard (Socket 3, M key, type 2242/2280 SATA and PCIe x1 SSD support)
  2. 4 x SATA 6Gb/s connectors
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

• USB

  Chipset:

  1. 4 x USB 3.0/2.0 ports on the back panel
  2. 2 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector on the back of the motherboard
  6. 4 x SATA 6Gb/s connectors
  7. 1 x MSATA connector
  8. 1 x USIM connector on the back of the motherboard
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x battery power cable connector
  12. 1 x USB 2.0/1.1 header
  13. 2 x serial port power select jumpers
  14. 1 x AT/ATX mode switch jumper (AT_ATX)
  15. 1 x GPIO header
  16. 1 x LVDS header
  17. 1 x LVDS drive voltage jumper (LCD_VCC)
  18. 1 x backlight switch header (BL_SW)
  19. 1 x flat panel display switch header (MON_SW)
  20. 1 x flat panel display header (FPD)
  21. 1 x speaker header (SPKR)
  22. 1 x buzzer header (SPEAKER)
  23. 1 x Clear CMOS jumper
  24. 1 x chassis intrusion header
  25. 1 x I2C jumper
  26. 1 x SMBUS jumper

• Back Panel Connectors

  1. 4 x USB 3.0/2.0 ports
  2. 2 x RJ-45 ports
  3. 1 x D-Sub port
  4. 1x HDMI2.0 port (Note)
  5. 1 x DisplayPort
  6. 2 x audio jacks

• I/O Controller

  1. ＮuvoTon NCT6116D

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for @BIOS
  2. Support for Q-Flash

• Bundled Software

  1. Norton^® Internet Security (OEM version)

• Operating System

  1. Support for Windows 10 64-bit /Linux

• Form Factor

  1. Mini-ITX Form Factor; 17.0cm x 17.0cm

• Operating Temperature

  0‎°C to +60°C
