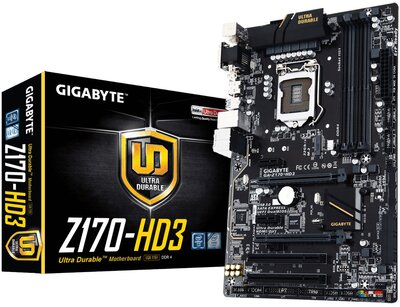

Gigabyte GA-Z170-HD3 - DDR4 Alaplap

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2. Az L3 gyorsítótár mérete processzorfüggő

(Please refer "CPU Support List" for more information.)

• Intel® Z170 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
3. Kétcsatornás memória
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. XMP (Extreme Memory Profile) memóriamodulok támogatása
7. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules

(Please refer "Memory Support List" for more information.)

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4a version.
3. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
   * The DVI-D port does not support D-Sub connection by adapter.
4. Support for up to 3 displays at the same time

Maximum shared memory of 512 MB

1. Realtek® ALC887 codec
2. HD audió
3. 2/4/5.1/7.1 csatorna
4. Support for S/PDIF Out

• Realtek® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
4. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 2 x PCI slots

• Support for 2-Way AMD CrossFire™ Technology

1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
5. * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.

1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x párhuzamos csatoló
2. 1 x M.2 Socket 3 connector
3. 1 x 8 tűs ATX 12V tápcsatoló
4. 3 x rendszerventilátor csatoló
5. 1 x CPU fan header
6. 1 x front panel header
7. 1 x 24-pin ATX main power connector
8. 2 x USB 3.0/2.0 headers
9. 1 x front panel audio header
10. 2 x USB 2.0/1.1 headers
11. 1 x serial port header
12. 1 x Clear CMOS jumper
13. 1 x S/PDIF Out header
14. 6 x SATA 6Gb/s connectors
15. 1 x Trusted Platform Module (TPM) header
16. 1 x Thunderbolt™ add-in card connector
17. 3 x SATA Express connectors

1. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
2. 2 x USB 2.0/1.1 ports
3. 4 x USB 3.0/2.0 ports
4. 1 x HDMI csatoló
5. 1 x PS/2 keyboard/mouse port
6. 1 x D-Sub port
7. 1 x DVI-D port
8. 1 x RJ-45 port

• iTE® I/O Controller Chip

1. CPU/Rendszerhőmérséklet érzékelés
2. CPU/System fan speed detection
3. CPU/System fan fail warning
4. CPU/System overheating warning
5. Feszültségszintek érzékelése
6. CPU/Rendszerventilátor szabályozás
7. * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 64 Mbit flash
2. Support for DualBIOS™
3. Use of licensed AMI UEFI BIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Q-Flash
2. Support for Xpress Install
3. Support for Smart Switch
4. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
5. Easy RAID
6. @BIOS™
7. Auto Green
8. Support for Cloud Station
9. EasyTune
10. USB Blocker
11. Smart TimeLock
12. Fast Boot
13. System Information Viewer
14. 3D OSD
15. Smart Keyboard
16. Smart Backup

1. Intel® Smart Response Technology
2. cFosSpeed
3. Norton® Internet Security (OEM version)

1. * Please download “Windows® USB Installation Tool” to install Windows® 7.
2. Support for Windows 10/8.1/7

• ATX Form Factor; 30.5cm x 19.9cm

1. GA-Z170-HD3 motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User's Manual
6. One G Connector

1. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
2. Az eltérő Linux verziók támogatottsága miatt kérjük, hogy a lapkakészlet meghajtóprogramját közvetlenül a lapkakészlet gyártójának honlapjáról töltse le.
