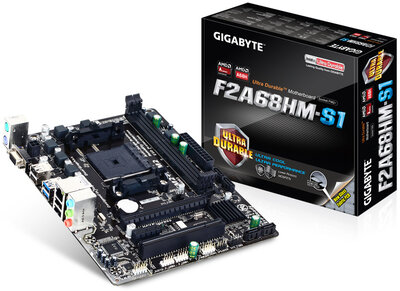

Gigabyte FM2 F2A68HM-S1 Alaplap

1. AMD A series processors
2. AMD Athlon™ series processors

(Please refer "CPU Support List" for more information.)

1. AMD A68H

1. 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
2. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
3. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
4. Dual channel memory architecture
5. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
6. Support for AMD Memory Profile (AMP) / Extreme Memory Profile (XMP) memory modules

*Please refer "Memory Support List" for more information

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. Maximum shared memory of 2 GB

1. High Definition Audio
2. Support for S/PDIF Out
3. 2/4/5.1/7.1-channel
   *To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Realtek® ALC887 codec

1. Realtek® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
   * To support PCI Express 3.0, you must install an FM2+ APU.
2. 1 x PCI Express x1 slot
   (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
3. 1 x PCI slot

1. Support for AMD Dual Graphics technology
   Only A series APUs support AMD Dual Graphics.

1. Support for RAID 0, RAID 1, RAID 10, and JBOD
2. 4 x SATA 6Gb/s connectors

1. 2 x USB 3.0/2.0 ports on the back panel
2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 4-pin ATX 12V power connector
2. 2 x system fan headers
3. 1 x front panel header
4. 1 x 24-pin ATX main power connector
5. 1 x front panel audio header
6. 4 x SATA 6Gb/s connectors
7. 2 x USB 2.0/1.1 headers
8. 1 x APU fan header
9. 1 x Clear CMOS jumper
10. 1 x S/PDIF Out header
11. 1 x chassis intrusion header
12. 1 x speaker header

1. 1 x RJ-45 port
2. 4 x USB 2.0/1.1 ports
3. 2 x USB 3.0/2.0 ports
4. 1 x PS/2 mouse port
5. 1 x PS/2 keyboard port
6. 1 x D-Sub port
7. 3 x audio jacks (Line In, Line Out, Mic In)

1. iTE® I/O Controller Chip

1. System voltage detection
2. APU/System temperature detection
3. APU/System fan speed detection
4. APU overheating warning
5. APU/System fan fail warning
6. APU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Q-Flash
2. Support for Xpress Install
3. Support for @BIOS
4. Support for ON/OFF Charge
5. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
6. Support for Smart Recovery 2

1. Norton® Internet Security (OEM version)

1. Support for Windows XP 32-bit
2. Support for Windows 8.1/7 32-bit/64-bit

* It requires Service Pack 3 to support Windows XP driver installation.

* To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU.

1. Micro ATX Form Factor; 22.6cm x 17.4cm
