Leírás | |
be quiet! Straight Power 11 Platinum 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises. | |
Marketing leírás | |
| |
Termék: | |

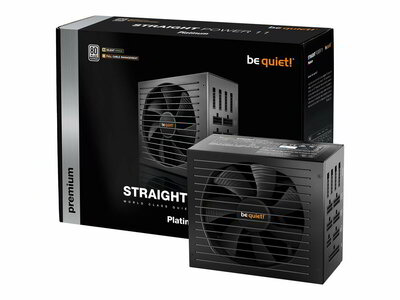

Termék neve: | BE QUIET STRAIGHT POWER 11 PLATINUM 1000W |
Leírás: | be quiet! Straight Power 11 Platinum 1000W - Power supply (internal) - ATX12V 2.51/ EPS12V 2.92 - 80 PLUS Platinum - AC 100-240 V - 1000 Watt - active PFC - black |
EAN: | 4260052187401 |
Gyártói garancia: | 60 hónap |
General | |
Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance: | ATX12V 2.51/ EPS12V 2.92 |
PSU Form Factor: | ATX |
Colour: | Black |
Power Device | |
Input Voltage: | AC 100-240 V |
Frequency Required: | 50 - 60 Hz |
Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section 6 x 8 pin PCI Express power with detachable 2 pin section 1 x power 8 pin +12V with detachable 4 pin section 11 x 15 pin Serial ATA power 4 x 4 PIN internal power |
Output Voltage: | +3.3, +5, ±12 V |
Power Capacity: | 1000 Watt |
Output Current: | +3.3V - 25 A +5V - 25 A +12V1 - 22 A +12V2 - 22 A +12V3 - 30 A +12V4 - 30 A -12V - 0.5 A +5VSB - 3 A |
Efficiency: | 92.4% at 100% Load, 94.1% at 50% Load, 92.8% at 20% Load |
Power Factor (PF): | 0.99 |
Modular Cable Management: | Yes |
80 PLUS Certification: | 80 PLUS Platinum |
Miscellaneous | |
Included Accessories: | Screws, cable ties |
MTBF: | 100,000 hours |
Cooling System: | 135 mm fan |
Features: | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology, fully modular |
Compliant Standards: | BSMI, CB, FCC, cTUVus, ErP Ready, ERP, EAC, RCM, TUV Rheinland, CU |
Environmental Standards | |
ENERGY STAR: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 5 years |
Environmental Parameters | |
Max Operating Temperature: | 40 °C |
Sound Emission: | 7.8 dBA |
Dimensions & Weight | |
Width: | 15 cm |
Depth: | 16 cm |
Height: | 8.6 cm |
Weight: | 1.87 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 24.8 cm |
Shipping Depth: | 32.8 cm |
Shipping Height: | 10.2 cm |
Shipping Weight: | 3.43 kg |
