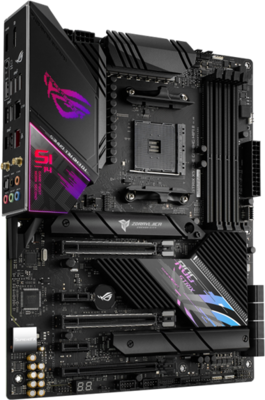

Asus X570 sAM4 ROG Strix X570-E GAMING WIFI II ATX

ROG STRIX X570-E GAMING WIFI II

AMD X570 ATX gaming motherboard with PCIe^® 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting

• AMD AM4 socket: Ready for AMD Ryzen^™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
• Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
• Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
• High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
• Best Gaming Connectivity: Supports PCIe^® 4.0, HDMI^® 2.0, and DisplayPort^™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
• 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
• Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS^® Sound Unbound and Sonic Studio III
• DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack^™
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

ROG STRIX X570-E GAMING WIFI II

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

* Refer to www.asus.com for CPU support list.

Chipset

AMD X570 Chipset

Memory

Max Memory Size:128GB

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 5000 and 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 2000 Series Desktop Processors

4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory

AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors

4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x HDMI 2.0**

1 x DisplayPort

1 x HDMI^® port

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

* VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual.

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8)*

AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor

2 x PCIe 3.0 x16 (x16 or dual x8)*

AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor

1 x PCIe 3.0 x16 (x8 mode)*

AMD X570 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2 x PCIe 4.0 x1

*PCIeX16_3 slot shares bandwidth with PCIeX1_2.

Storage

Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 Chipset

M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

8 x SATA 6Gb/s ports

Supports RAID 0, 1, 10

Ethernet

1 x Realtek 2.5Gb Ethernet

1 x Intel® I211-AT 1Gb Ethernet

Anti-surge LANGuard

ROG GameFirst Technology

1 x Intel® 1Gb Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors

- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)

AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors

- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)

AMD X570 chipset

- 1 x USB 3.2 Gen2 front panel connector

- 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)

- 2 x USB3.2 Gen1 ports (at front panel)

- 4 x USB 2.0 ports (at front panel)

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® I211-AT 1Gb Ethernet port

1 x Realtek 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Intrernal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

1 x 4-pin M.2 Fan header

1 x W_PUMP+ header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- Q-Code

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB headers

- Addressable Gen 2 headers

Software Features

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst V

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization by Dual Intelligent Processors 5

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo app

- EZ update

DAEMON Tools

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Dynamic OC Switcher

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PXE

Accessories

Cables

4 x SATA 6Gb/s cables

1 x Thermistor cable pack

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

ATX

30.5cm x 24.4cm
