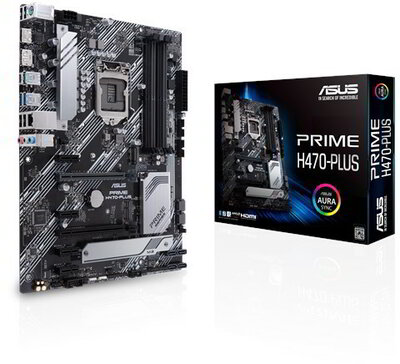

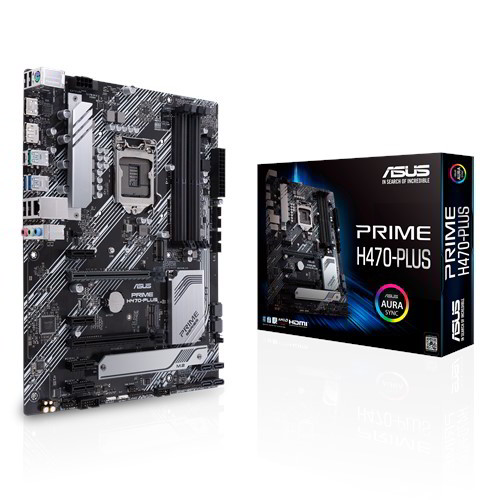

Asus H470 s1200 PRIME H470-PLUS 4xDDR4, 6xSATA3, 2xM.2, 6x PCI-E, Gbit LAN, ATX

Intel® H470 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps,
1Gb Ethernet, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 3 support, and Aura Sync RGB Lighting

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• Enhanced power solution: 6+1+1 power stages, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Ultrafast connectivity: Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 support

• CPU

  Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel® H470

• Memory

  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Graphic

  Integrated Graphics Processor
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

• Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology

• Expansion Slots

  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel^® H470 Chipset
  1 x PCIe 3.0 x16 (x4 mode)
  4 x PCIe 3.0 x1

• Storage

  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel^® H470 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*¹
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready

• LAN

  Realtek® RTL8111H

• Wireless Data Network

  M.2 slot only (Key E) (Support CNVI & PCIe interface)*
  *Wi-Fi module is sold separately.

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Rear USB Port ( Total 8 )
  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
  Front USB Port ( Total 7 )
  4 x USB 3.2 Gen 1 port(s)
  3 x USB 2.0 port(s)

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  AI Suite 3
  - Performance And Power Saving Utility
  EPU
  Digi+ VRM
  Fan Xpert 2+
  - EZ update
  AI Charger
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features

  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum M.2 heatsink
  - Aluminum heatsink design
  AURA Sync
  - Standard RGB header
  - Addressable Gen 2 RGB header

• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)
  2 x USB 3.2 Gen 1 Type-A
  4 x USB 2.0 *²
  3 x Audio jack(s)

• Internal I/O Ports

  1 x CPU Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x Aura RGB Strip Headers
  1 x Addressable Gen 2 header(s)
  2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x M.2 with E key for Wi-Fi module
  1 x SPI TPM header
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x M.2 SSD screw package(s)
  1 xM.2 Key E screw package(s)
  1 x M.2 Rubber Package(s)

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

• Operating System

  Windows® 10 64-bit

• Form Factor

  ATX Form Factor
  12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

• Note

  *1 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
  *2 USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.
