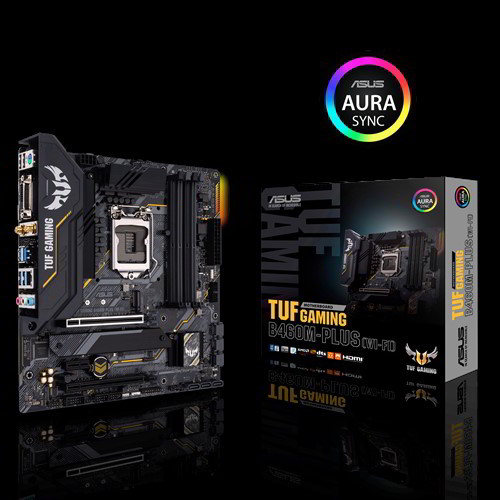

Asus B460 s1200 TUF GAMING B460M-PLUS (WI-FI) 4xDDR4, 6xSATA3, 2xM.2, 3xPCI-E, Gbit LAN, WiFi6 AX, mATX alaplap

Intel® B460 (LGA 1200) micro ATX gaming motherboard with dual M.2, 8 power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink
• Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard and Turbo LAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips

• CPU

  Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel® B460

• Memory

  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Graphic

  Integrated Graphics Processor
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  1 x DVI-D
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

• Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology

• Expansion Slots

  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel® B460 Chipset
  1 x PCIe 3.0 x16 (x4 mode)
  1 x PCIe 3.0 x1

• Storage

  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® B460 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*¹
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready *²

• LAN

  Intel® I219-V 1Gb Ethernet

• Wireless Data Network

  Intel® Wi-Fi 6 AX200
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  Supports up to 2.4Gbps max data rate
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Supports PCIe interface

• Bluetooth

  Bluetooth v5.1*
  *BT 5.1 function will be ready in Windows 10 build 19041 or later.

• Audio

  Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Exclusive DTS Custom for GAMING Headsets.
  - Audio cover
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Rear USB Port ( Total 6 )
  4 x USB 3.2 Gen 1 port(s)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  AI Suite 3
  - Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+
  - EZ update
  AI Charger
  ASUS Turbo LAN
  DTS Custom for GAMING Headsets
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features

  ASUS TUF PROTECTION
  - ASUS DIGI+ VRM
  - ASUS Enhanced DRAM Overcurrent Protection
  - ASUS ESD Guards
  - TUF LANGuard
  - ASUS Overvoltage Protection
  - SafeSlot Core+
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum M.2 heatsink
  - Aluminum heatsink design
  AURA Sync
  - Standard RGB header(s)
  - Addressable Gen 2 RGB header(s)

• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  1 x ASUS Wi-Fi Module

• Internal I/O Ports

  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  2 x Aura RGB Strip Headers
  1 x Addressable Gen 2 header(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Chassis intrusion header is inbuilt)
  1 x Clear CMOS jumper(s)
  1 x COM port header

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x Wi-Fi moving antenna
  1 x M.2 SSD screw package(s)
  1 x M.2 Rubber Package(s)

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PXE

• Operating System

  Windows® 10 64-bit

• Form Factor

  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

• Note

  *1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
  *2 Only the M.2_2 socket can support Intel® Optane™ Memory Ready.
