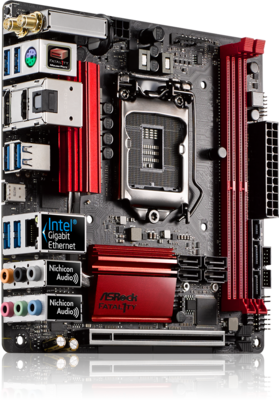

ASRock Z270 Gaming-ITX/ac, INTEL Z270 Series, Mini-ITX

• Gaming Armor

  CPU Power
  - Hi-Density Power Connector
  - Dual-Stack MOSFET (DSM)
  Memory
  - 15μ Gold Contact in DIMM Slots
  VGA Card
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  Internet
  - Intel^® LAN
  Cooling
  - 8 Layer PCB
  - 4 x 2oz copper
  - Heat Pipe Design
  Audio
  - Creative Sound Blaster™ Cinema 3

• Egyéni tuljadonságok

  ASRock Super Alloy
  - Premium 60A Power Choke
  - Dual-Stack MOSFET (DSM)
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - Matte Black PCB
  - High Density Glass Fabric PCB
  Intel^® 802.11ac WiFi
  ASRock Steel Slots
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection
  ASRock Live Update & APP Shop

• Processzor

  - Supports 7th and 6th Generation Intel^® Core™ i7/i5/i3/Pentium^®/Celeron^® Processors (Socket 1151)
  - Digi Power design
  - 8 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
  - Supports Intel^® K-Series unlocked CPUs
  - Supports ASRock BCLK Full-range Overclocking

• Chipset

  - Intel^® Z270

• Memória

  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 4000+(OC)*/3866(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 32GB***
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *További információért lásd Memória támogatási lista az ASRock weboldalán.

  **7th Gen Intel^® CPU supports DDR4 up to 2400; 6th Gen Intel^® CPU supports DDR4 up to 2133.

  ***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS

  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment

• Videokártyák

  - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics
  - Gen9 LP, DX11.3, DX12
  - HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel^® CPU)
  - HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel^® CPU)
  - Max. shared memory 1024MB*
  - Three graphics output options: HDMI, DisplayPort 1.2 and Intel^® Thunderbolt™ 3
  - Supports Triple Monitor
  - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
  - Supports Intel^® Thunderbolt™ 3 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with HDMI, DisplayPort 1.2 and Intel^® Thunderbolt™ 3
  - Supports Full HD 1080p Blu-ray (BD) playback with HDMI, DisplayPort 1.2 and Intel^® Thunderbolt™ 3



  *Az Intel^® HD Graphics Built-in Visuals és VGA támogatása csak beépített GPU-val rendelkező processzorok esetében lehetséges.

  **A megosztott memória maximális mérete operációs rendszerenként eltérő.

  ***Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.

  ****Intel^® InTru™ 3D is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.

• Audio

  - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection (ASRock Full Spike Protection)
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - TI^® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Front Out port
  - Individual PCB Layers for R/L Audio Channel
  - 15μ Gold Audio Connector
  - Supports Creative Sound Blaster™ Cinema 3

• LAN

  - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel^® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE

• Wireless LAN

  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 867Mbps
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 4.0 / 3.0 + High speed class II

• Slotok

  - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  *Supports NVMe SSD as boot disks

• Tárolás

  - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 15 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug*
  - 1 x SATA Express 10 Gb/s Connector**
  - 1 x Ultra M.2 Socket, supports type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***



  *Ha az M2_1 foglalatban SATA-típusú M.2 eszköz van, a SATA3_0 funkciója kikapcsol

  **Support to be announced

  ***Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks

• Csatlakozó

  - 1 x Chassis Intrusion Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x CPU opcionális/Vízszivattyú ventilátor csatlakozó (4-pin) (Smart Fan Speed Control)**
  - 1 x Chassis Fan Connector (4-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))



  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
  CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

• Hátsó panel I/O

  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.2
  - 1 x Intel^® Thunderbolt™ 3 (Compatible with USB 3.1 and USB-C Display)*
  - 1 x Optical SPDIF Out Port
  - 5 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x Fatal1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Switch
  - HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone



  *Supports USB PD 2.0 up to 12V@3A (36W) charging
  Hot Plug is supported on Win 10 only

• Szoftver és UEFI

  Software
  - ASRock F-Stream
  - ASRock Key Master
  - ASRock APP Charger
  - ASRock XFast LAN*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS
  - ASRock UEFI System Browser
  - ASRock UEFI Tech Service
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Support CD

  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Kiegészítők

  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 1 x ASRock WiFi 2.4/5 GHz Antenna
  - 1 x Screw for M.2 Socket

• Hardware Monitor

  - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis Fans
  - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis Fans
  - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis Fans
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST

• Form Factor

  - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - 8 Layer PCB
  - 4 x 2oz copper

• Operációs rendszer

  - Microsoft^® Windows^® 10 64-bit (For 7th Gen Intel^® CPU)
  - Microsoft^® Windows^® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel^® CPU)*



  *To install Windows^® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
  For the updated Windows^® 10 driver, please visit ASRock's website for details.

• Tanusítványok

  - FCC, CE, WHQL
  - ErP/EuP ready (ErP/EuP ready power supply is required)
