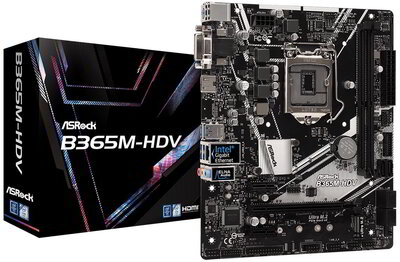

ASRock B365M-HDV s1151 alaplap

  • Gyártó: ASRock
  • Cikkszám: B365M-HDV
  • Frissítve: 4 órája
  • Azonosító: #721327

Újdonság!
utolsó darabok ezen az áron!
1 munkanapon belül elérhető
36 hónap ASROCK gyártói garancia
22 660 Ft (17 842 Ft + ÁFA)

Átvételi lehetőségek

Személyes átvétel átvételi pontunkon
Ha most megrendeli 2019.10.18 pénteken
16:00 után
átveheti!
Házhozszállítás futárszolgálattal
Ha most megrendeli 2019.10.21 (hétfőn) átveheti!
Szállítási díj: +1 969 Ft
Pick Pack Ponti átvételi
Ha most megrendeli, Pesten: 2019.10.21 (hétfőn), Vidéken: 2019.10.22 (kedden) átveheti!
Szállítási díj: +1 334 Ft
GLS Ponti átvételi
Ha most megrendeli, Pesten: 2019.10.21 (hétfőn), Vidéken: 2019.10.22 (kedden) átveheti!
Szállítási díj: +1 651 Ft

B365M-HDV

  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Intel® Gigabit LAN

  • Unique Feature

    ASRock Super Alloy
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

  • CPU

    - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    - Supports CPU up to 95W
    - Supports Intel® Turbo Boost 2.0 Technology

  • Chipset

    - Intel® B365

  • Memory

    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 32GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

  • Graphics

    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  • Audio

    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
    - Supports Surge Protection
    - ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

  • LAN

    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

  • Slots

    - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

    *Supports NVMe SSD as boot disks

  • Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • Connector

    - 1 x Print Port Header
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O

    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 4 x USB 3.1 Gen1 Ports
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI

    Software
    - ASRock A-Tuning
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

  • Accessories

    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket

  • Hardware Monitor

    - Temperature Sensing: CPU, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.05V

  • Form Factor

    - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
    - Solid Capacitor design

  • OS

    - Microsoft® Windows® 10 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)




Törekszünk a weboldalon megtalálható pontos és hiteles információk közlésére. Olykor, ezek tartalmazhatnak téves információkat: a képek tájékoztató jellegűek és tartalmazhatnak tartozékokat, amelyek nem szerepelnek az alapcsomagban, egyes leírások vagy az árak előzetes értesítés nélkül megváltozhatnak a gyártók által, vagy hibákat tartalmazhatnak.

Processzor foglalat LGA-1151
CPU Intel
Memória típus DDR4
VGA csatoló PCI-Express 3.0
Csatlakozók
  • SATA3
  • Ultra M.2
USB USB 3.1
Hálózat 1000 Mbit
WIFI Nincs WIFI
